The Degenerate Gaussian

We often come across multivariate Gaussian distributions in which the covariance matrix is singular. This can happen, for example, when measuring a large number of variables (such as the Fourier modes of a density field) with a window function applied. The window function correlates the modes, reducing the number of degrees of freedom and giving a singular covariance matrix.

We are considering a multivariate Gaussian of the form $$p(d) = \frac{1}{\sqrt{\det(2\pi C)}}\,e^{-\frac12\, d^T C^{-1} d}\,,$$ where $d$ is the data vector, and $C$ is the covariance matrix. (We will not be so pedantic to insist on a notation that distinguishes between scalars, vectors, and matrices – there are so few, you will know the type of every variable.)

The question is how to handle $C^{-1}$ when $C$ is singular?

In such cases, statistics often recommends (but also discourages) the use of the Moore-Penrose pseudo-inverse. However, the Moore-Penrose pseudo-inverse expands the errorellipse to infinity in the nullspace of the covariance matrix when it should be collapsed to zero there.

I will first argue that the correct procedure is to discard the nullspace of the covariance matrix, and then I will show that the Moore-Penrose pseudo-inverse instead does the opposite, and I will conclude with some closing thoughts that using the pseudo-inverse at worst gives more conservative constraints than the full likelihood.

A simple example

Let’s consider a simple $2$-dimensional example, where the two variables are the same variable, let’s call it $a$. In that case our data vector is $d=(d_1,d_2)$ with $d_1=d_2=a$, and the covariance matrix is $$C = \begin{pmatrix} 1 & 1 \\ 1 & 1 + \epsilon \end{pmatrix}\,,$$ with eigenvalues $$\lambda = 1 + \epsilon/2 \pm\sqrt{1 + \epsilon^2/4}\,,$$ which in the limit $\epsilon\to0$ are $\lambda=2+\epsilon/2,\epsilon/2$. We have added a small $\epsilon>0$, because we want to explore the degenerate limit $\epsilon\to0$ from above. (Note that we cannot explore it from below where $\epsilon<0$, because then the matrix is no longer semi-positive definite.)

The inverse is $$C^{-1} = \begin{pmatrix} \frac{1}{\epsilon}+1 & -\frac{1}{\epsilon} \\ -\frac{1}{\epsilon} & \frac{1}{\epsilon} \end{pmatrix}\,,$$ and it has eigenvalues $\lambda=0.5-\epsilon,2/\epsilon$, in the limit $\epsilon\to0$.

This makes sense: The near-zero eigenvalue gets a very large precision, but because of the large correlation in the off-diagonal terms, this just means the two variables $d_1$ and $d_2$ are tightly coupled to each other.

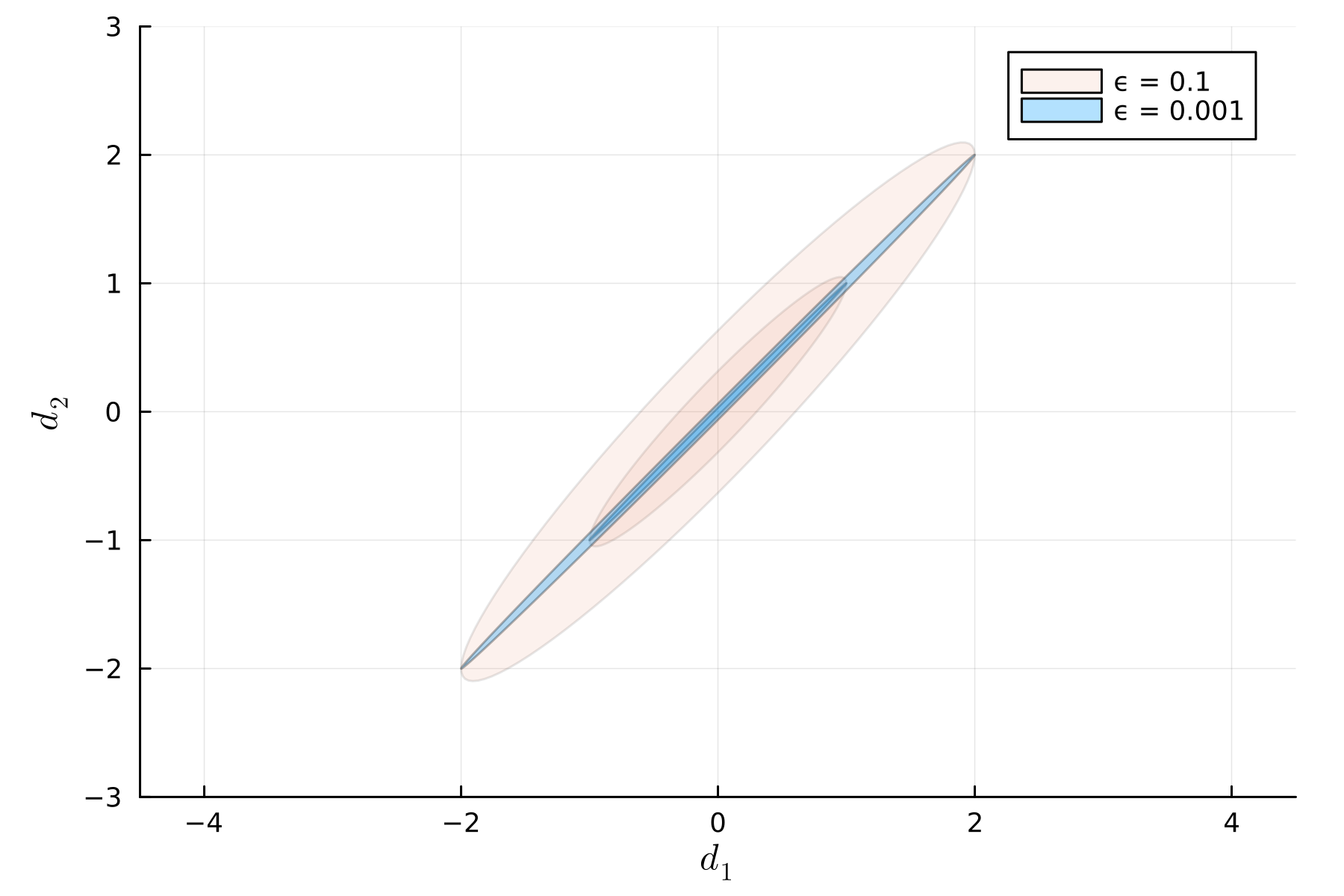

The errorellipse looks as in the plot below. Here, we have plotted the 1-σ and 2-σ contours for two values of $\epsilon$:

Because in the limit $\epsilon\to0$ the probability density vanishes everywhere except when $d_1=d_2$, the 1-σ error ellipse is collapsed to a straight line from (-1,-1) to (1,1).

The nondegenerate subspace

More generally, let’s say we have $n$ variables, but only $m<n$ degrees of freedom. That is, there are $n-m$ linear combinations of the variables that are fully coupled to the other $m$ linear combinations of the variables, and for the covariance matrix there are $n-m$ eigenvalues that vanish.

The $n$-dimensional error ellipse is now collapsed into an $m$-dimensional nondegenerate subspace.

This subspace is spanned by the eigenvectors corresponding to the nonzero eigenvalues. We can project our data vector onto that subspace by forming a matrix from these nondegenerate eigenvectors. Further, we can also deproject back into the degenerate $n$-dimensional space with the transpose of that matrix.

This procedure is quite similar to what is done for the Moore-Penrose pseudo-inverse. However, it avoids sending the zero eigenvalues to zero, instead avoiding the arising infinities by going to the nondegenerate subspace.

The Moore-Penrose pseudo-inverse

In the limit $\epsilon\to0$, the Moore-Penrose pseudo-inverse does not exist, since when $\epsilon=0$ the pseudo-inverse is $$C^+ = \begin{pmatrix} 0.25 & 0.25 \\ 0.25 & 0.25 \end{pmatrix}\,,$$ with eigenvalues $\lambda = 0.5, 0$. As opposed to taking the inverse, the zero eigenvalue did not get sent to infinity, but to zero.

This means that instead of the two variables getting coupled, one of them remains unconstrained.

One way to see this is that any vector proportional to the eigenvector with zero eigenvalue gets sent to the null-vector: $C^+\cdot v_0=(0,0)$, where $v_0$ is a vector proportional to that eigenvector.

Therefore, changing that variable will always give the same probability density in the Gaussian, because $d^T C^+ d = \mathrm{const}$ in that case.

To be a little more concrete, in the 2D case you can write out the probability density with the pseudo-inverse. You will find that the probability density does not change along any line where $d_1 - d_2 = \mathrm{const}$; it only changes when $d_1+d_2$ changes.

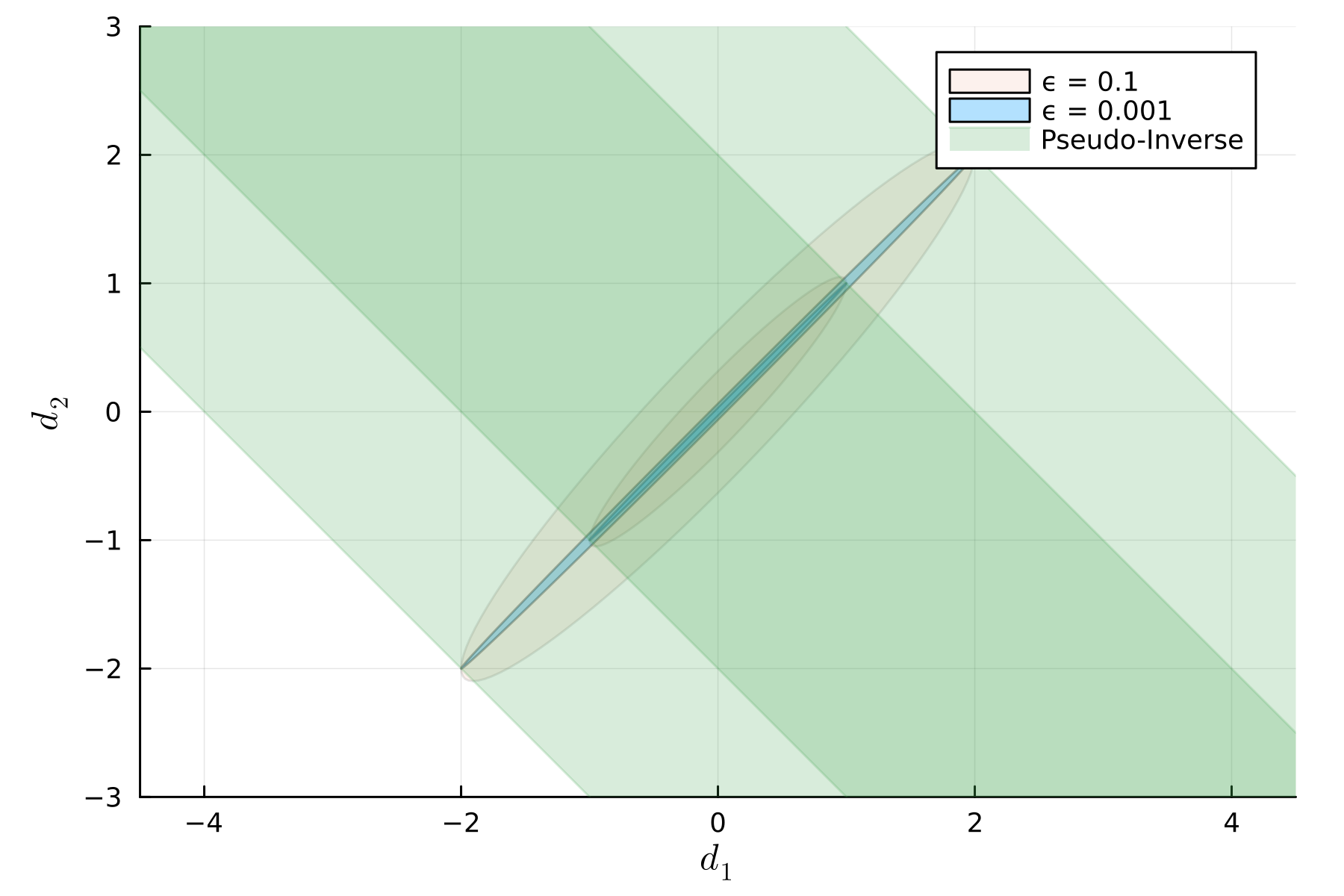

So instead of collapsing one of the dimensions of the error ellipse, the Moore-Penrose pseudo-inverse expands it infinitely, as illustrated in the following figure:

That is not what we want.

What we want is for the probability density to be a Gaussian along $d_1+d_2=\mathrm{const}$, and vanish otherwise. That, is we want a Dirac-delta along $d_2-d_1=\mathrm{const}$. We could get that if $d^T C^+ d$ were to send the zero eigenvalue to infinity everywhere except in one point – a sort of anti-Dirac delta function. The actual inverse is the thing that gives us that, and by projecting into the nondegenerate subspace we can avoid the numerical difficulties of dealing with infinities.

Does it matter?

There are several things to consider when evaluating whether this matters or not. After all, we are rarely interested in the variables $d_1$ and $d_2$, but rather in some set of parameters that depend on $d_1$ and $d_2$. Let’s call these the parameters of interest.

In the first case, the parameters of interest might only depend on the nondegenerate subspace of the covariance matrix, $d_1 + d_2$ in our example. In that case, the pseudo-inverse will give exactly the same probability distribution as the original likelihood.

In the second case, the parameters of interest will depend on the nullspace as well. The resulting constraint might still be finite, however, either because the dependence on the nullspace is nonlinear and actually constrained, or perhaps we have a prior that constrains it. Otherwise, the constraints will be infinite.

To conclude, in the best case, using the pseudo-inverse will give the same constraints on parameters as the actual likelihood, and in the worst case, the constraints will be much looser.
